Explosion-proof ESX stainless steel box
Explosion-proof ESX stainless steel box
Explosion-proof stainless steel box type ESX manufactured by BARTEC with type of protection II 2 G Ex e IIB or IIC T6 ÷ T3 Gb is used for installation in hazardous areas 1/2 (Gases) and areas 21/22 (Dust). The box can be fitted with controls according to customer specifications, ranging from explosion-proof pushbuttons to ammeters and switches. The ESX box can be fitted with controls according to customer specifications, ranging from explosion-proof pushbuttons to ammeters and switches.
The maximum overall dimensions of the manufactured enclosure are 2000x1800x600 mm (HxWxH).
The box can be supplied separately as a housing or as an assembly. Customised orders are accepted. The production of the boxes is located at the Bartec Feam factory in Italy.
Technical specifications:
|
Explosion protection marking |
II 2 G Ex e IIB or IIC T6 ÷ T3 Gb |
| Temperature range environments |
-60°C ÷ +60°C (+160°C with ceramic terminals) |
|
Housing and cover material |
Stainless steel AISI-316L |
|
Bolt material |
Stainless steel AISI-316L |
| Mounting plate material | Stainless steel AISI-316L |
|
Type of protection |
IP66 |
Order codes:
|
Equipment ordering code
|

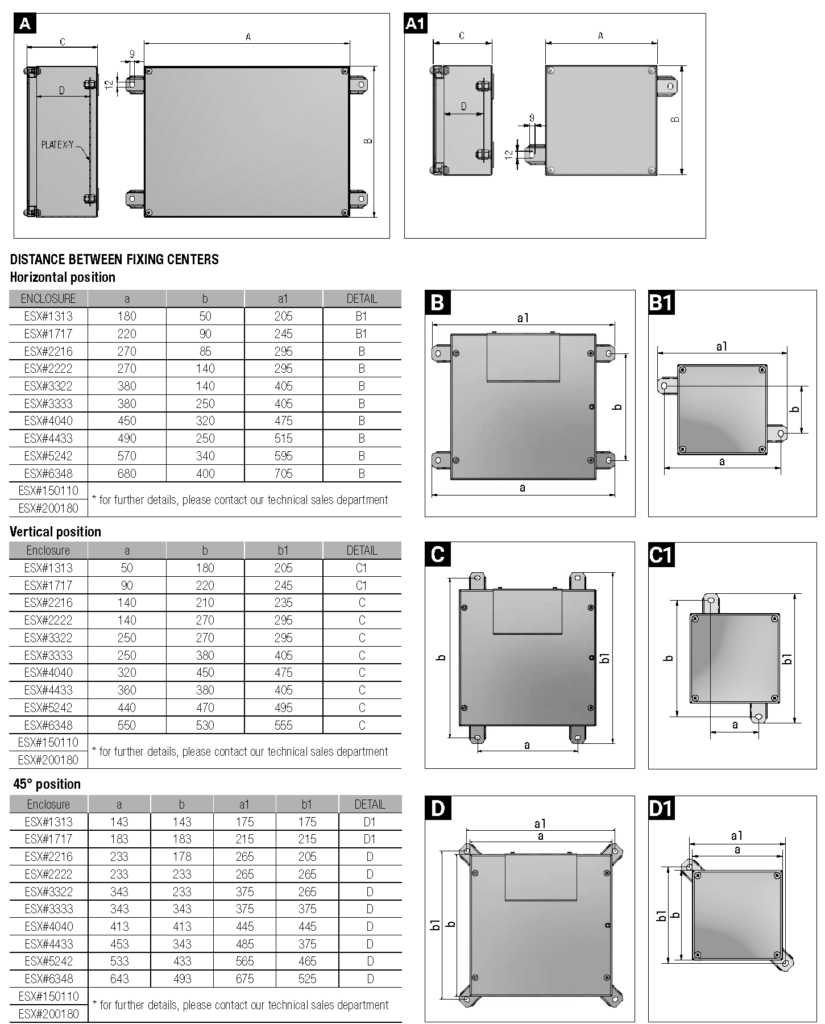

Overall dimensions of the enclosure | |||
|
A, mm (height) |
В, mm (width) |
D, mm (depth) |
||
| ESX#013013B **** ** | 130 | 130 | 90 | |
| ESX#017017B **** ** | 170 | 170 | 90 | |
| ESX#022016A **** ** | 220 | 165 | 150 | |
| ESX#022022A **** ** | 220 | 220 | 150 | |
| ESX#033022A **** ** | 330 | 220 | 150 | |
| ESX#033033A **** ** | 330 | 330 | 150 | |
| ESX#040040D **** ** | 400 | 400 | 200 | |
| ESX#044033A **** ** | 440 | 330 | 150 | |
| ESX#052042D **** ** | 520 | 420 | 200 | |
| ESX#063048D **** ** | 630 | 480 | 200 | |
| ESX#150110G **** ** | 1500 | 1100 | 900 | |
| ESX#200180H **** ** | 2000 | 1800 | 600 | |
**** ** – designation of additional elements included in the box (see additional description file).
